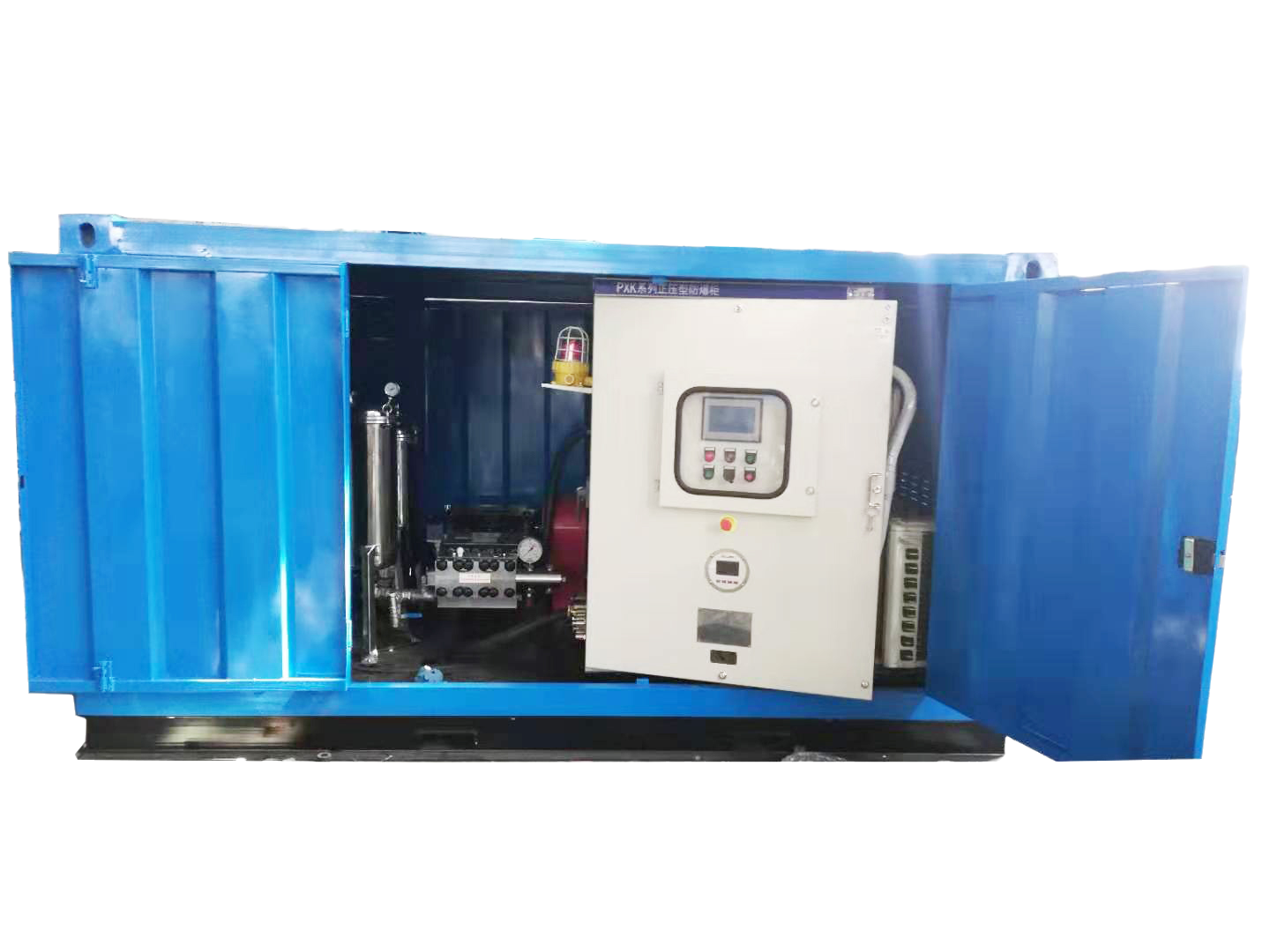

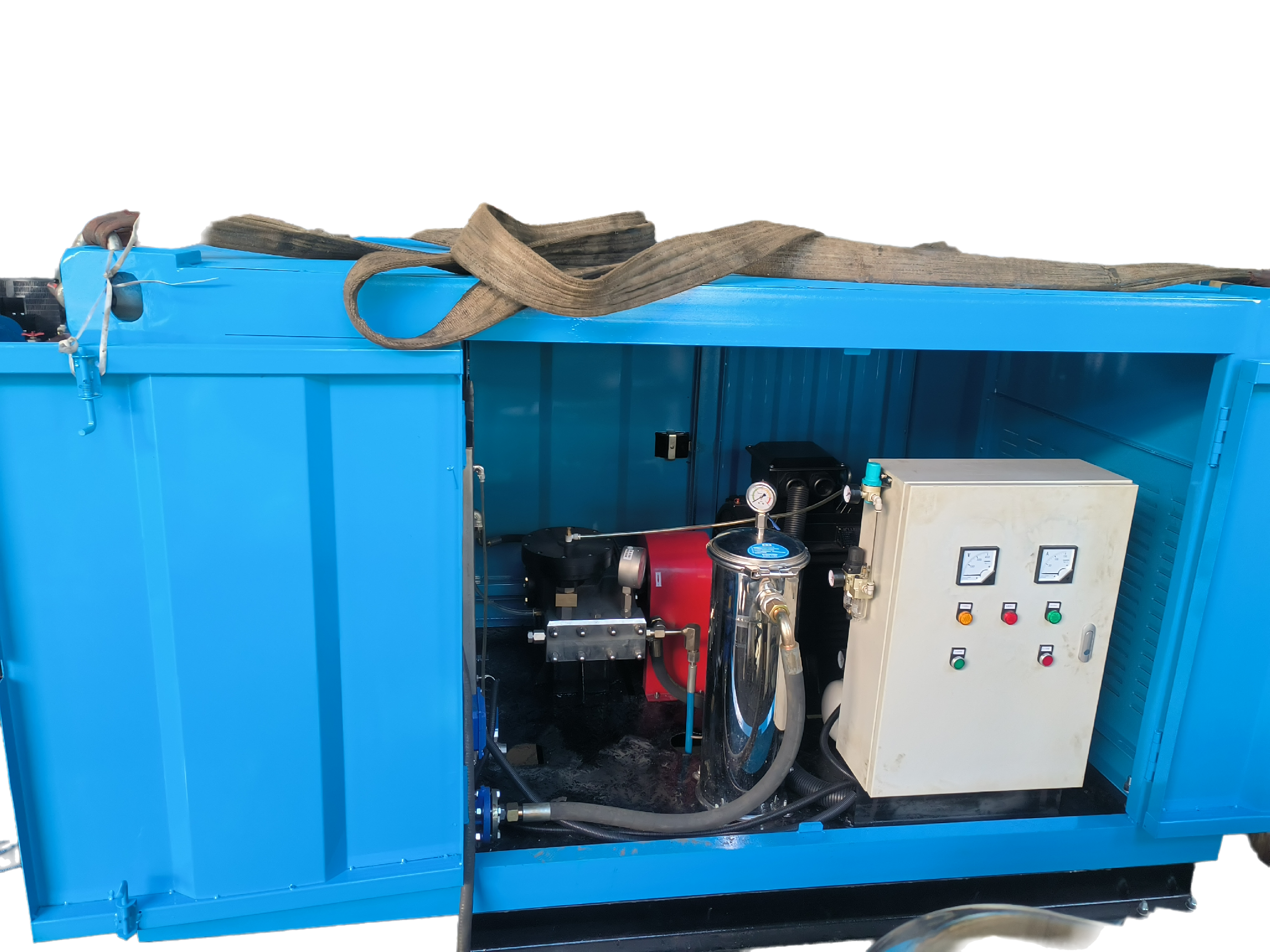

JLB-6 Ultra High Pressure Cleaner 1500bar-3000bar
JLB-6 Ultra High Pressure Cleaner 1500bar-3000bar
JLB-6 Ultra High Pressure Cleaner 1500bar-3000bar

JLB-6 Ultra High Pressure Cleaner 1500bar-3000bar

JLB-6 Ultra High Pressure Cleaner 1500bar-3000bar
JLB-6 Ultra High Pressure Cleaner 1500bar-3000bar
JLB-6 Ultra High Pressure Cleaner 1500bar-3000bar

About of JLB-6 Ultra High Pressure Cleaner 1500bar-3000bar

The crankshaft drives the connecting rod to push the plunger to make reciprocating motion, and the inlet and outlet valves are closed to generate high-pressure water. The impact force of the water is greater than the adhesion between the dirt and the surface of the object, so the dirt is separated from the surface of the object, achieving the purpose of cleaning;


How is works


  The crankshaft drives the connecting rod to push the plunger to make reciprocating motion, and the inlet and outlet valves are closed to generate high-pressure water. The impact force of the water is greater than the adhesion
between the dirt and the surface of the object, so the dirt is separated from the surface of the object, achieving the purpose of cleaning;


Product Advantage


  The high-pressure pump utilizes advanced German KAMAT technology, featuring a stainless steel pump head, a stainless steel nickel-plated alloy plunger, and forced water cooling. The water seal utilizes ductile iron, a high-pressure pump housing imported from the United States, for excellent heat dissipation and a hard, non-deformable texture. The crankcase on the power end utilizes forced lubrication, ensuring adequate lubrication and lowering crankcase temperatures, ensuring smooth and reliable transmission, reducing friction, and improving lubricity. Pure high-pressure water cleaning eliminates the need for chemical agents and is pollution-free, making it a nationally recognized green, environmentally friendly, and high-tech product.


Product Specifications
*Note: Technical data are subject to change without prior notice.

Name

Details

Model

GYB-6-31/2500

Rate Pressure

2500 bar / 36250 psi

Water flow

31 L/min

Plunger diameter

18mm

Inpurt speed

1480 rpm

Pump speed

366 rpm

Plunger stroke

120 mm

Electric motor drive

Power:160kw
