Used to dredge and remove blockages and dirt in pipelines in municipalities, residential areas, and industrial parks.

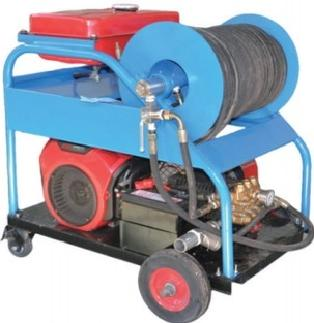

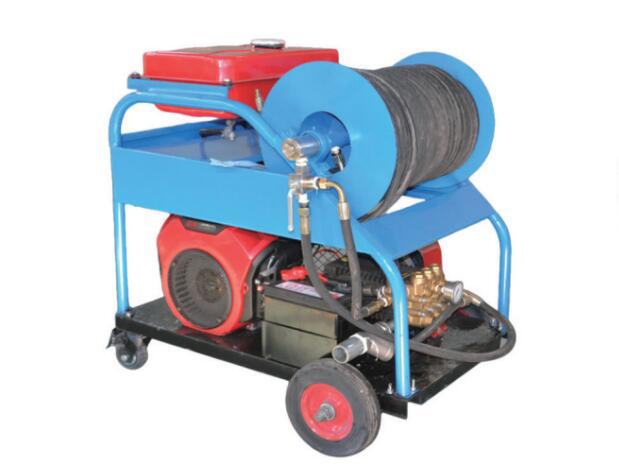

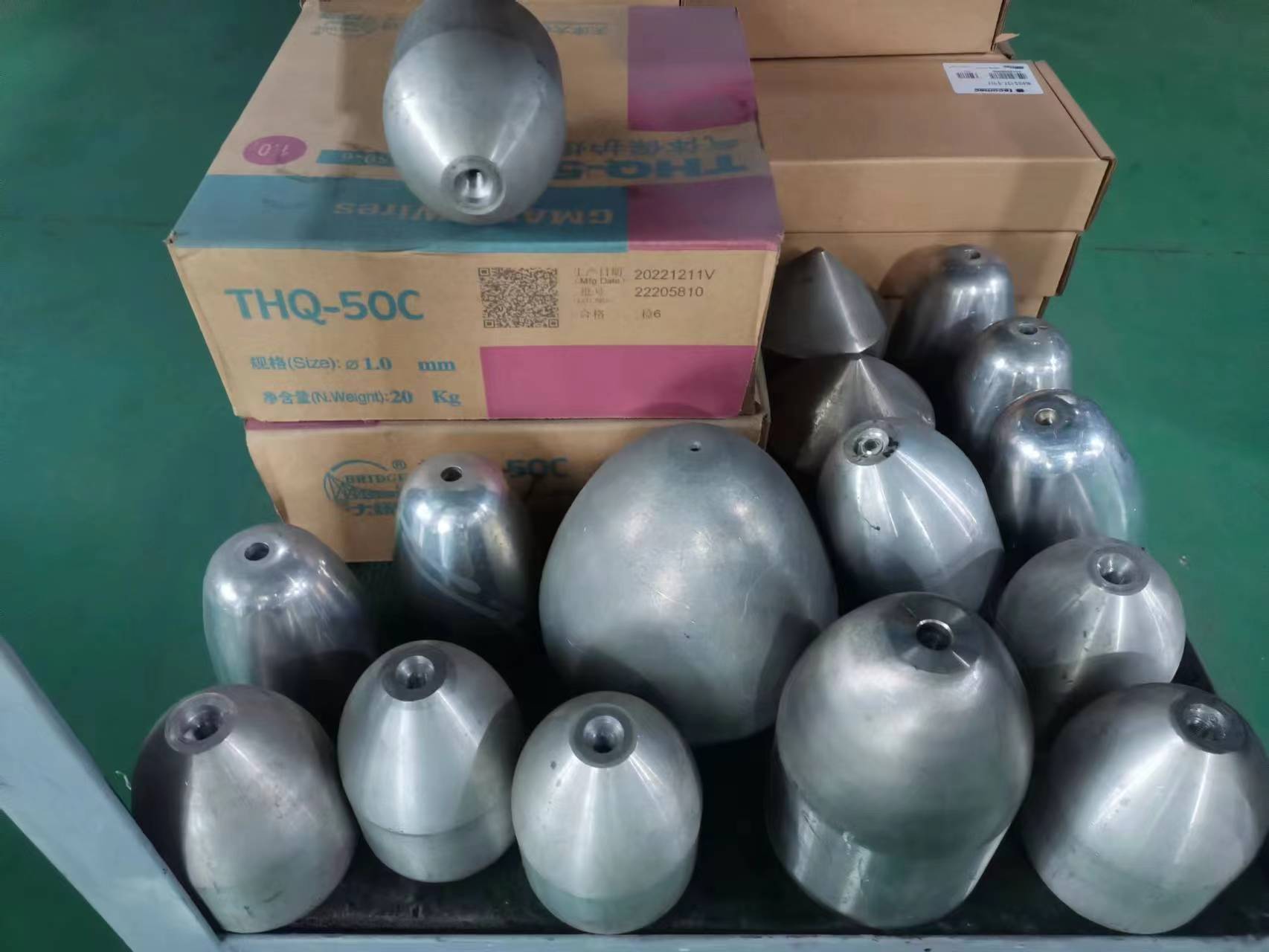

The high-pressure pump generates a high-pressure water jet when in operation. Connect the pipe unclogging nozzle to the high-pressure pump through a high-pressure hose, and place the nozzle directly in the pipe that needs to be unclogged. When the high-pressure pump is working, the reaction force generated by the high-pressure water sprayed from the rear of the nozzle is used to push the nozzle forward quickly, and the high-pressure water jet generated by the front and rear spray holes of the nozzle is used to quickly clean the pipe. When the pipe collector pulls the nozzle back, the high-pressure water flow will flush the dirt out of the pipe bundle.
1. It cleans quickly and efficiently, effectively preventing cities from becoming seas.
2. It thoroughly cleans oily dirt from sewer pipes, effectively addressing both the symptoms and the root cause, preventing further blockage.
3. Operators do not need to go down the well, saving time and effort and preventing methane poisoning.

model | Rated flow | Rated pressure (bar) | Drive power (kw) | |
M3/H | L/min | |||
JLB-1 | 3 | 50 | 180 | Gasoline driven 24HP |
JLB-1 | 3 | 50 | 220 | Diesel drive 26.5kw |
JLB · 1B | 5.1 | 85 | 200 | Motor drive 30kw |
JLB · 1B | 5.1 85 200 Diesel drive 41kw | |||
JLB-2 | 8.1 | 135 | 210 | Motor drive 55kw |
JLB-2 8.1 135 | 210 | Motor drive 66kw | ||
JLB-2 | 10.2 | 170 | 240 | Motor drive 75kw |
JLB-2 10.2 170 | 240 Diesel drive 84kw | |||
JLB-2 | 10.2 | 170 | 280 | Motor drive 90kw |
JLB-2 10.2 170 | 280 | Diesel drive 110kw | ||
JLB-7 | 180 | 300 | 300 | Diesel drive 200kw |
